Drum Mixers

Heavy duty drum mixers for open and closed top liquid drums

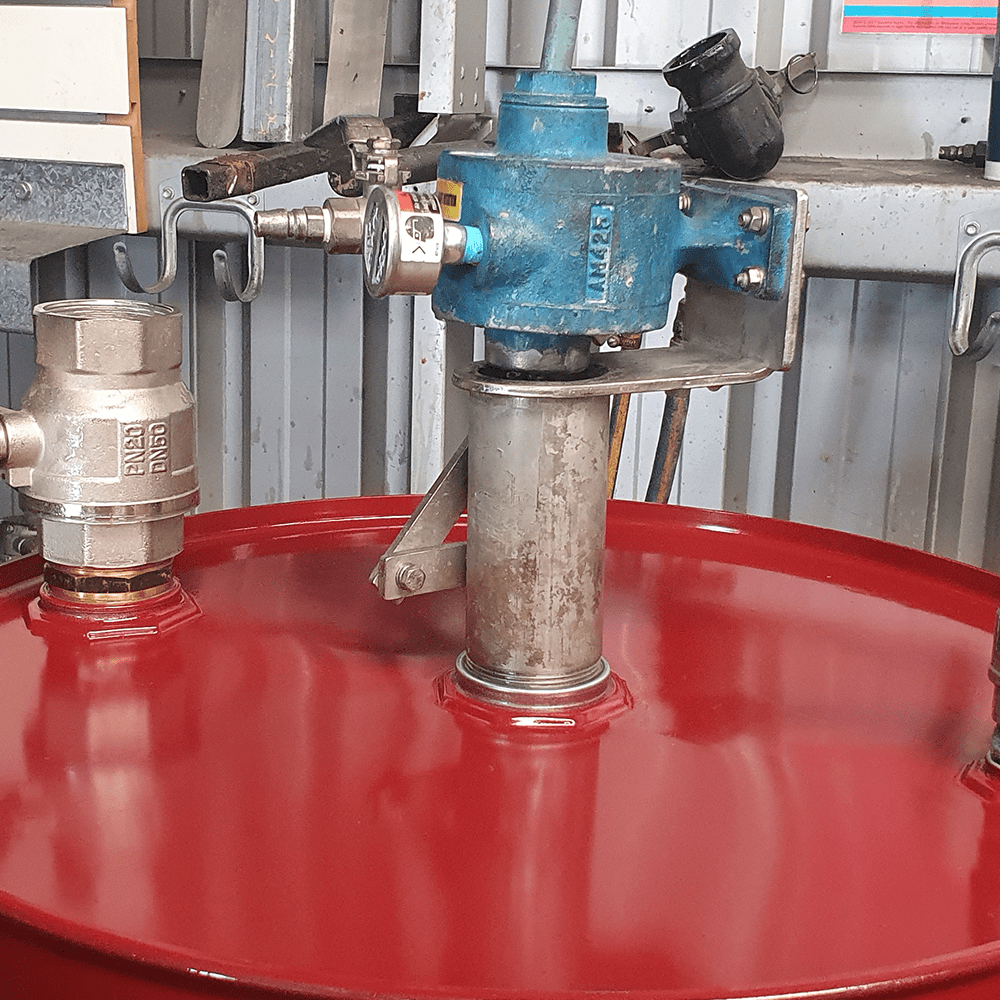

FluidPro heavy duty drum mixers are designed for most 200L drums with 2” bung openings. They are Australian designed and manufactured by FluidPro. These versatile pneumatic drum mixers are capable of blending a wide range of liquid mixing applications with a low to medium viscosity range. The pneumatic motor is angled toward the centre of the drum to allow clearance for the folding blades and maintain optimal agitation within the drum. Weighing in at less than 5kg the complete mixer assembly easily transfers from drum to drum in just seconds. An essential mixer for many industries, drum mixers allow for consistent processing and homogenising, while reducing operation time for more efficient processing. Combine storage and mixing to reduce process stages, and blend a wide range of liquids from low to medium viscosity to create a uniform mixture and reduce separation. Mix within your drum to reduce spills and wastage. FluidPro offers two different drum mixers: the DM-50 pneumatic drum mixer, designed with folding blades to fit into drum bung openings, and the DM-70 drum mixer, with specialised stainless steel bridge designed to fit to open top drums.
Applications
The FluidPro DM-70 Drum mixer Series are used in many applications, proving simple cost effective solutions in liquid blending, chemical mixing, cosmetics industry, water treatment, food & beverage, liquid fertiliser blending, wastewater PH correction, product re suspension and achieving homogenous uniform quality product mixtures.
  • Water treatment
  • Wastewater pH correction
  • Liquid blending
  • Chemical and petroleum mixing
  • Wine processing
  • Food and beverage processing
  • Cosmetics manufacturing
  • Product resuspension
  • Homogenising
  • Paint mixing
REQUEST A QUOTE

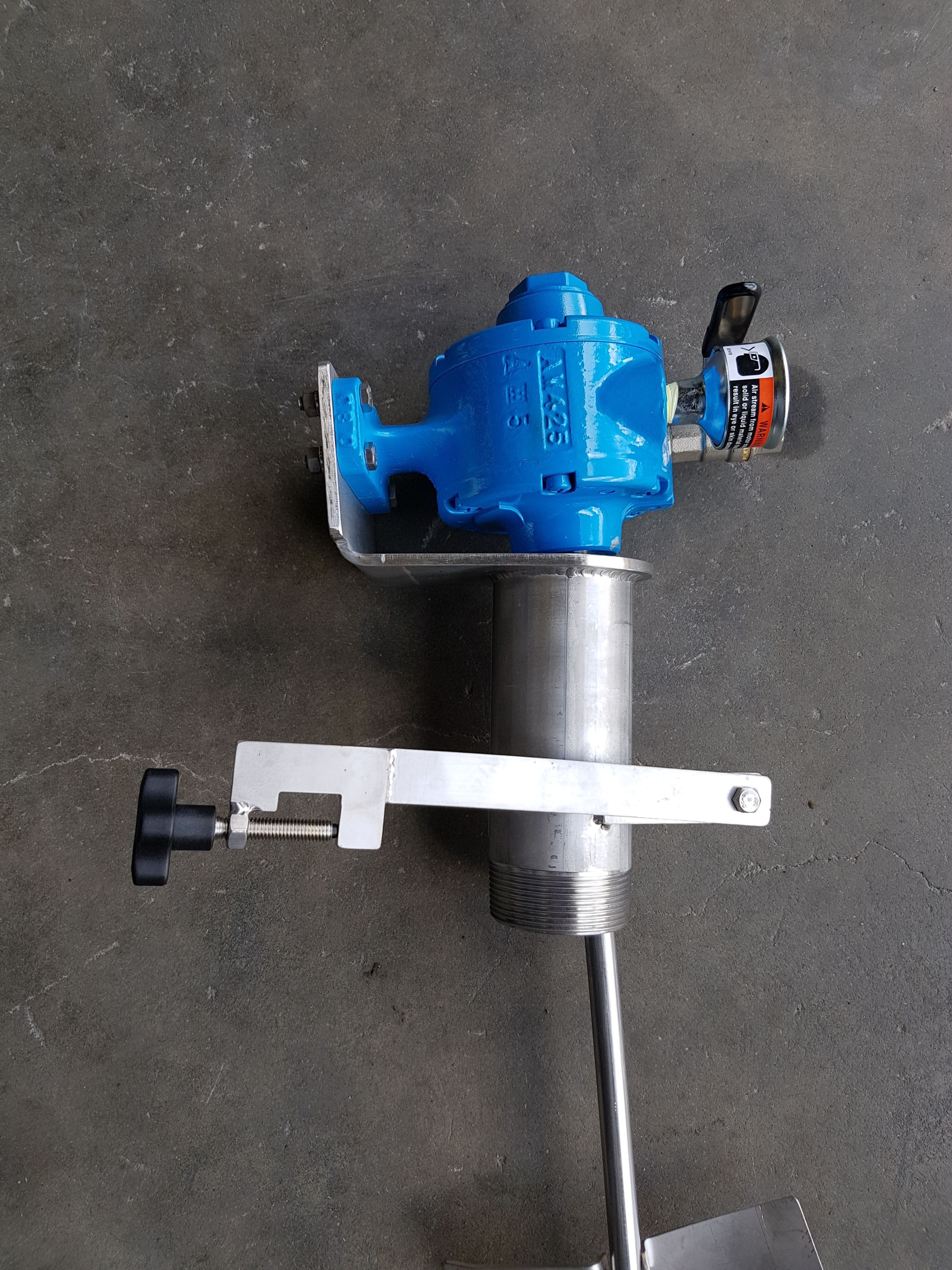

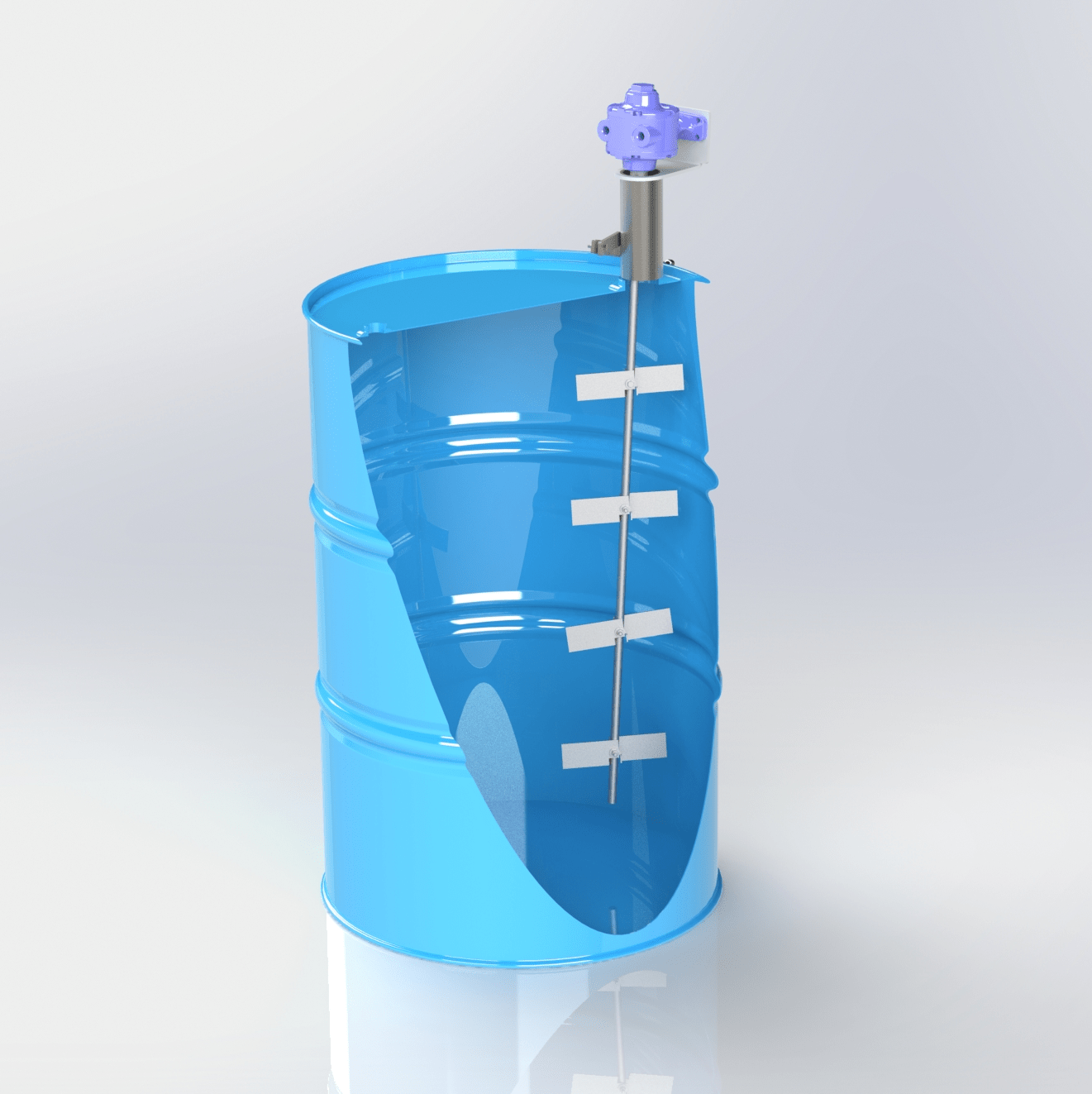

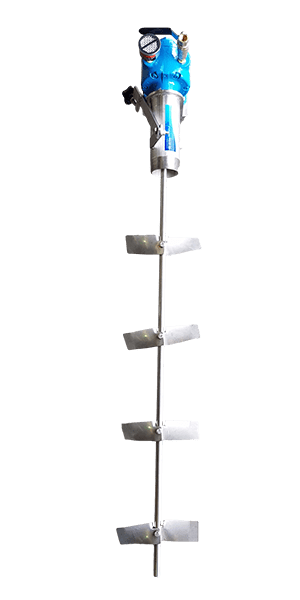

FluidPro DM-50 Series Drum Mixers
Versatile, pneumatic mixers with folding impellers to fit through a drum bung opening, with the motor angled towards the centre of the drum to optimise agitation.
Features
Lightweight, compact, quick to install, durable and robust with folding turbines designed to reduce mixing time. All wetted parts are made from 316 Stainless Steel.
  • Portable design for easy transfer between drums
  • Pneumatic motor angled toward the centre of the drum to allow blade clearance and maintain optimal agitation
  • Compact and easy to install
  • Folding turbines for radial flow agitation, to reduce mixing time
  • Stainless steel support housing and rigid shaft coupling for enhanced durability
request product brochureRequest instruction manual
FluidPro DM-50 Drum Mixers offer a variety of options to ensure the best agitation within your liquid drum. Electric motor options also available.
Options
  • Open and closed drum variations
  • 415V 3 phase electric
  • 240V single phase electric
  • Stainless steel rigid shaft coupling
REQUEST A QUOTE
Specifications
  • 0.2-1.4kW Pneumatic motor
  • 4 x Ø160mm folding blades, provides a radial flow agitation
  • Stainless Steel support housing
  • Stainless Steel rigid shaft coupling
  • 300-3000rpm
  • Air Consumed: 10-35L/sec
  • Air Pressure: 140-700Kpa
  • Sound Level: 87dB (A) MAX
  • Weight 6.5kgs
  • Shaft: Ø12.7mm x 925mm shaft
dOWNLOAD SPEC SHEET

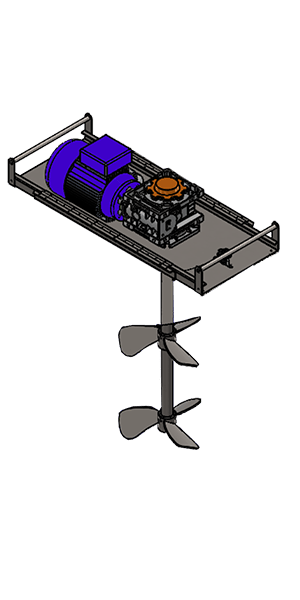

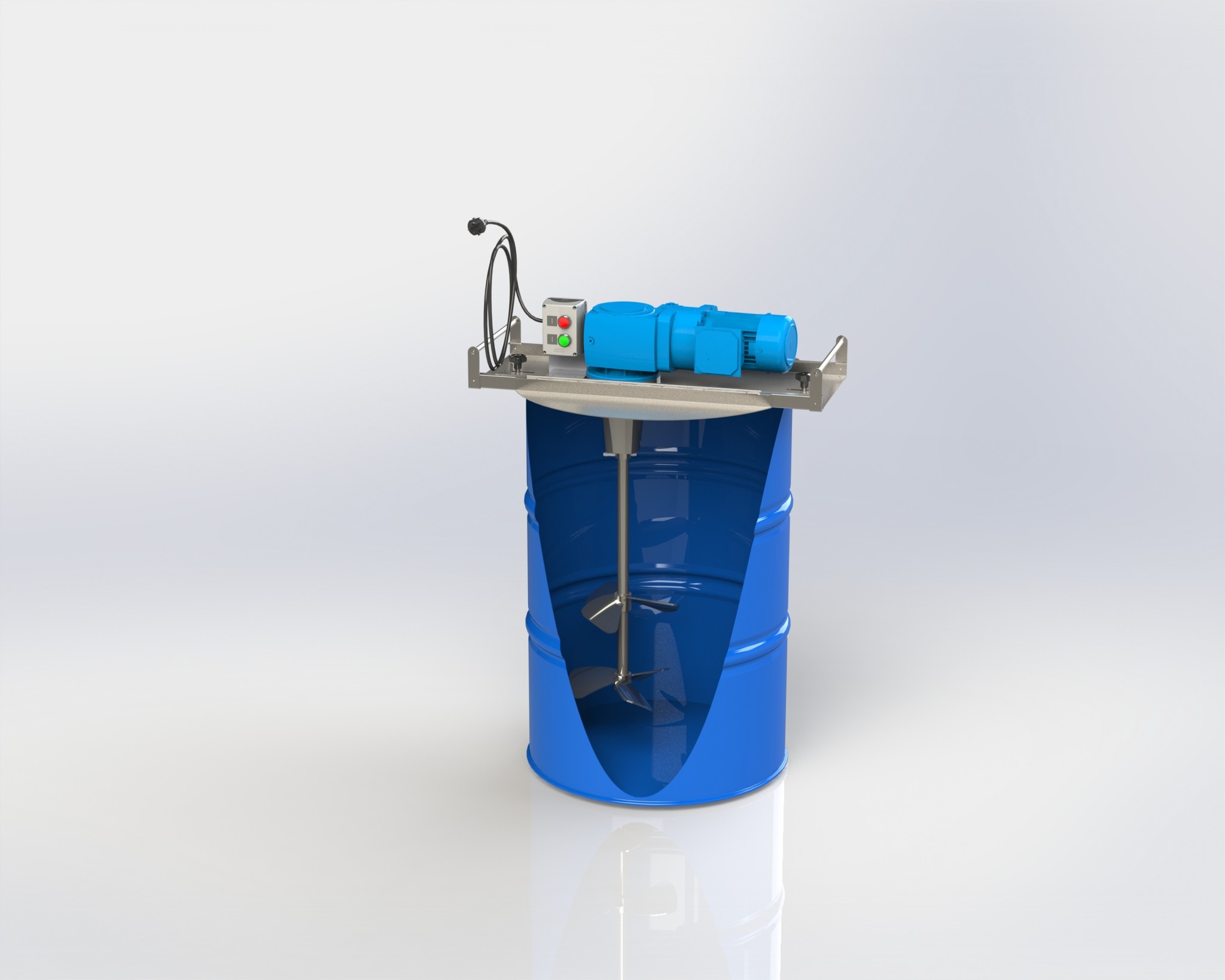

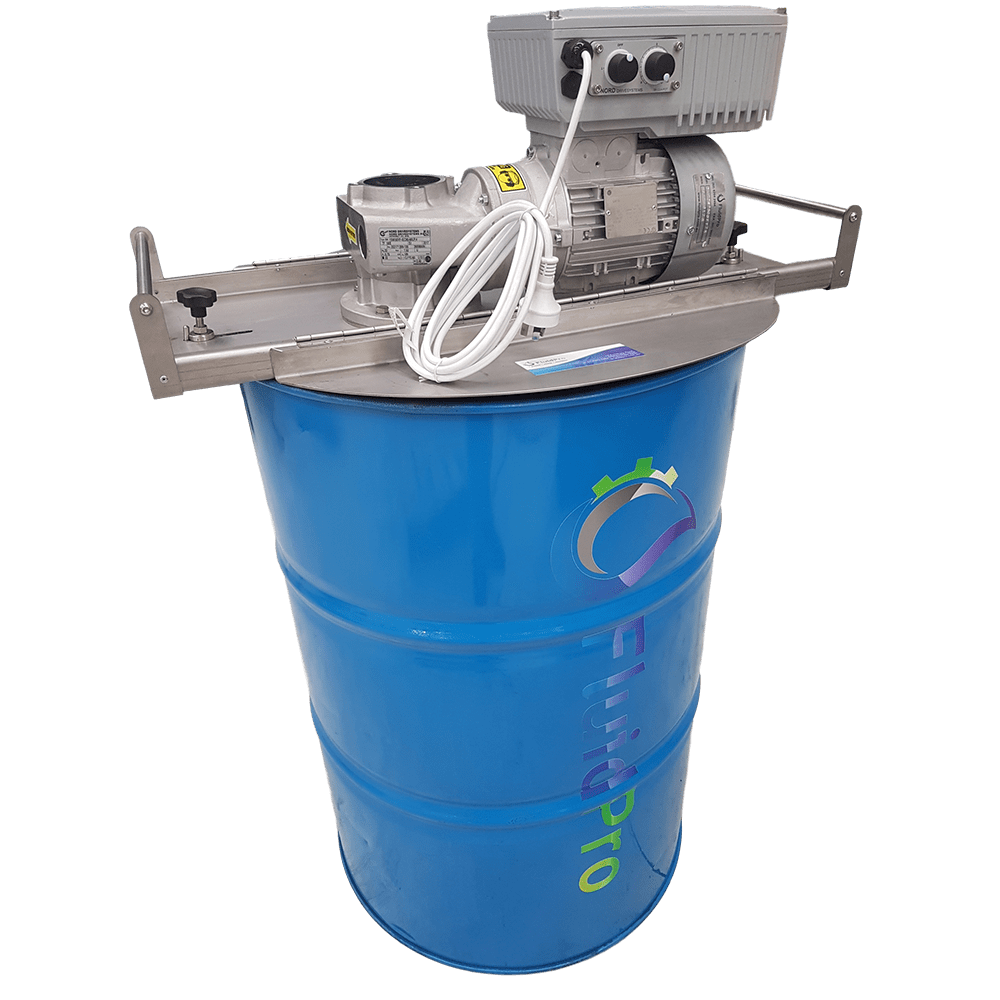

FluidPro DM-70 Series Drum Mixers
FluidPro’s DM-70 heavy duty drum mixers are a cost-effective solution suitable for most open-top 200L drums. Featuring a specialised stainless steel bridge mount and built-in lids, the DM-70 mixer can be locked securely to your drum, allowing you to mix fluids in an open drum without worrying about spills or splashes. Featuring two stainless steel marine propellers, the DM-70 drum mixer is designed for optimal agitation.
Features
Lightweight, compact, quick to install, durable and robust with folding turbines designed to reduce mixing time. All wetted parts are made from 316 Stainless Steel.
  • Stainless steel bridge and side lid design for secure attachment to open top drums
  • Variety of impeller options for optimised mixing operations within your drum
  • Secure locking for quick, simple installation
  • Stainless steel support housing and rigid shaft coupling for enhanced durability
  • Integrated VSD option
request product brochure
FluidPro DM-70 Drum Mixers are available in Gear Driven (Low Speed), Direct Driven (High Speed) and Explosion proof motors in 240V or 415V. Motor powers are selected suited to your mixing needs.
Options
  • Single Phase (240V)
  • Three Phase (415V)
  • Lead and Plug (10amp or 15amp)
  • Integrated Variable Speed Drive
REQUEST A QUOTE
Specifications
  • 2 x Ø250mm Marine Propellers, 316 Stainless Steel
  • Ø25.4mm x 700mm shaft, 316 Stainless Steel
  • Power: 0.2-1.4kW
  • 300-3000rpm
  • Air Consumed: 10-35L/sec
  • Air Pressure: 140-700Kpa
  • Sound Level: 87dB (A) MAX
  • Weight 30kgs
  • Stainless steel bridge
dOWNLOAD SPEC SHEET

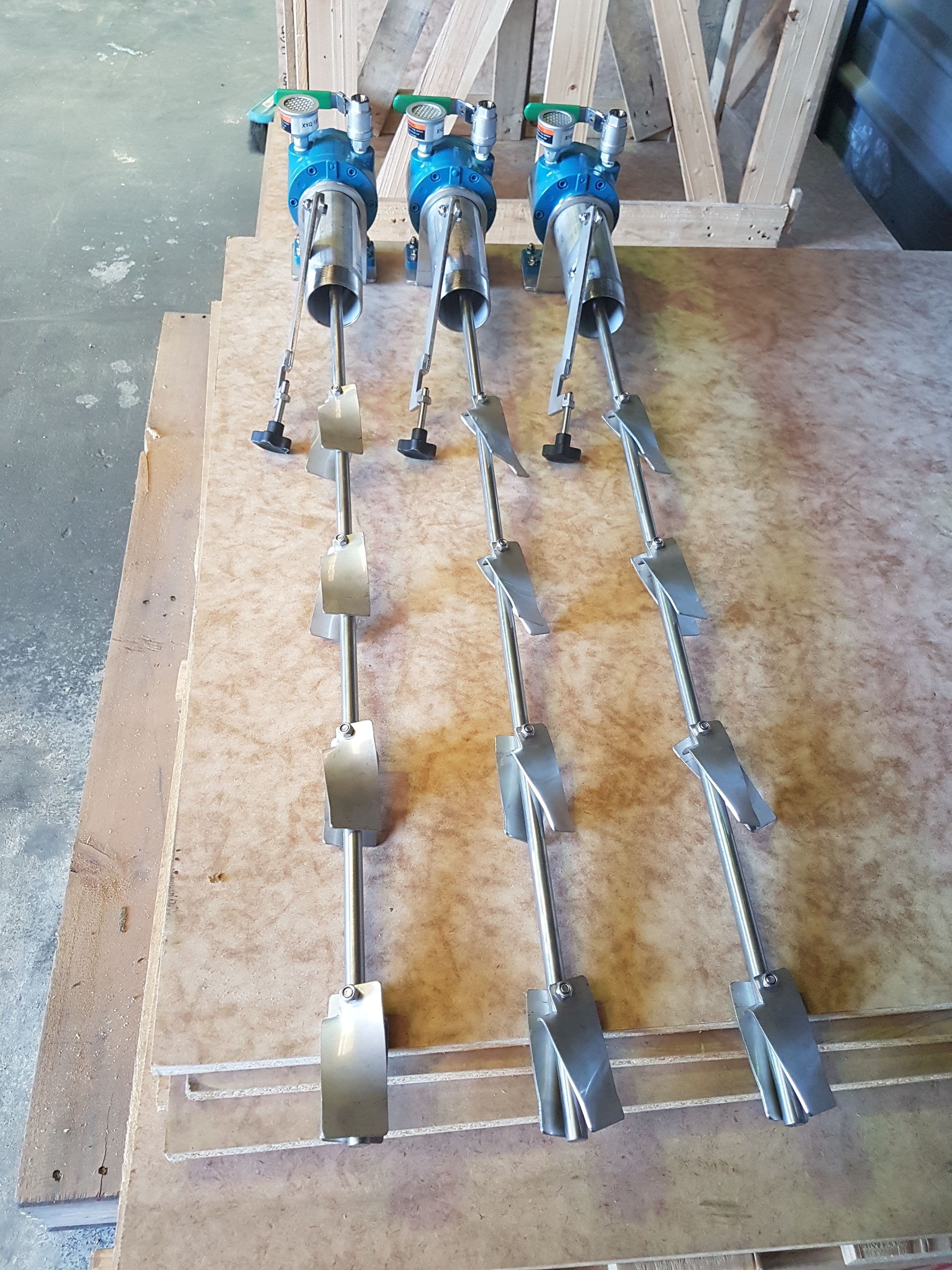

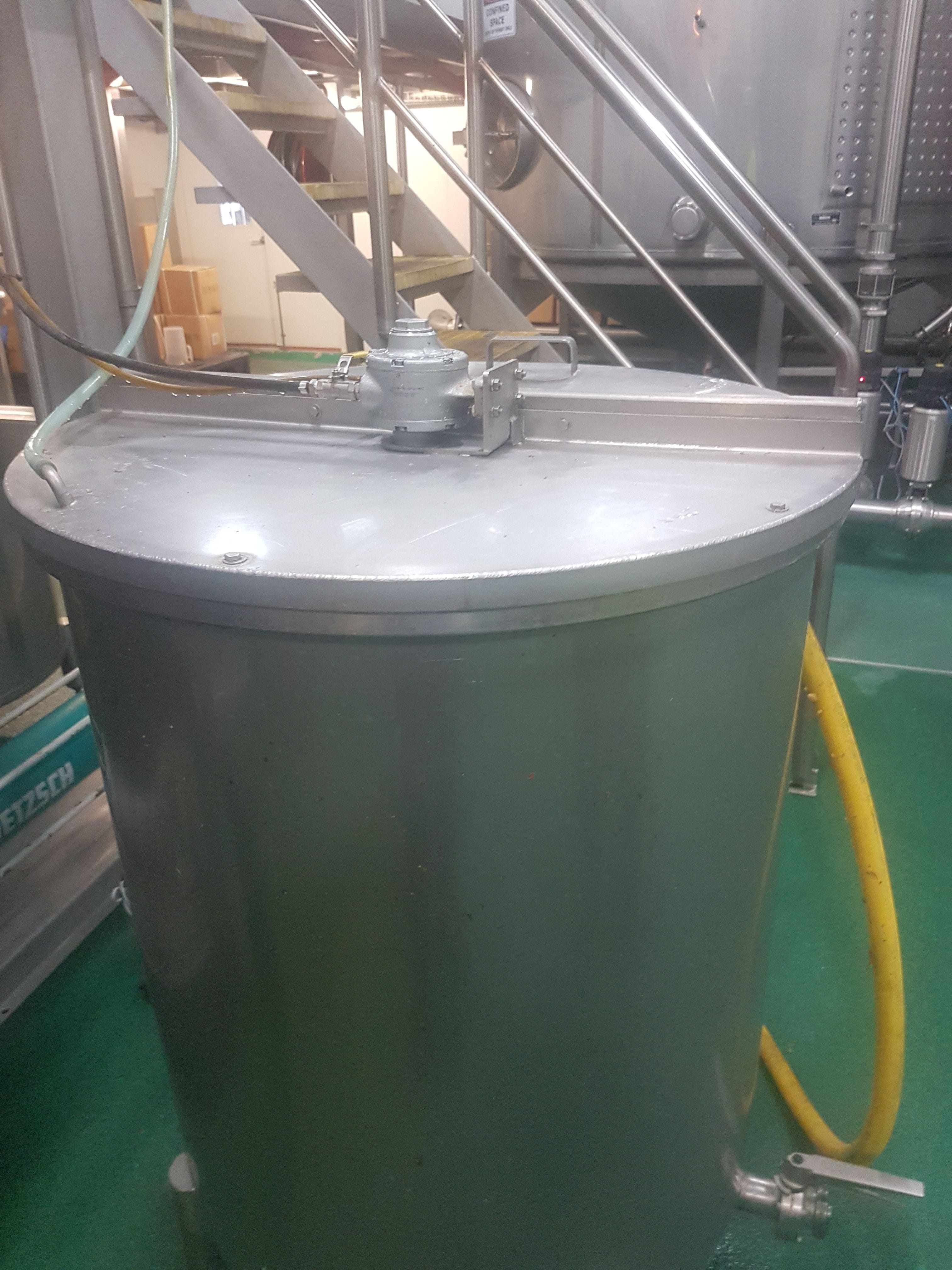

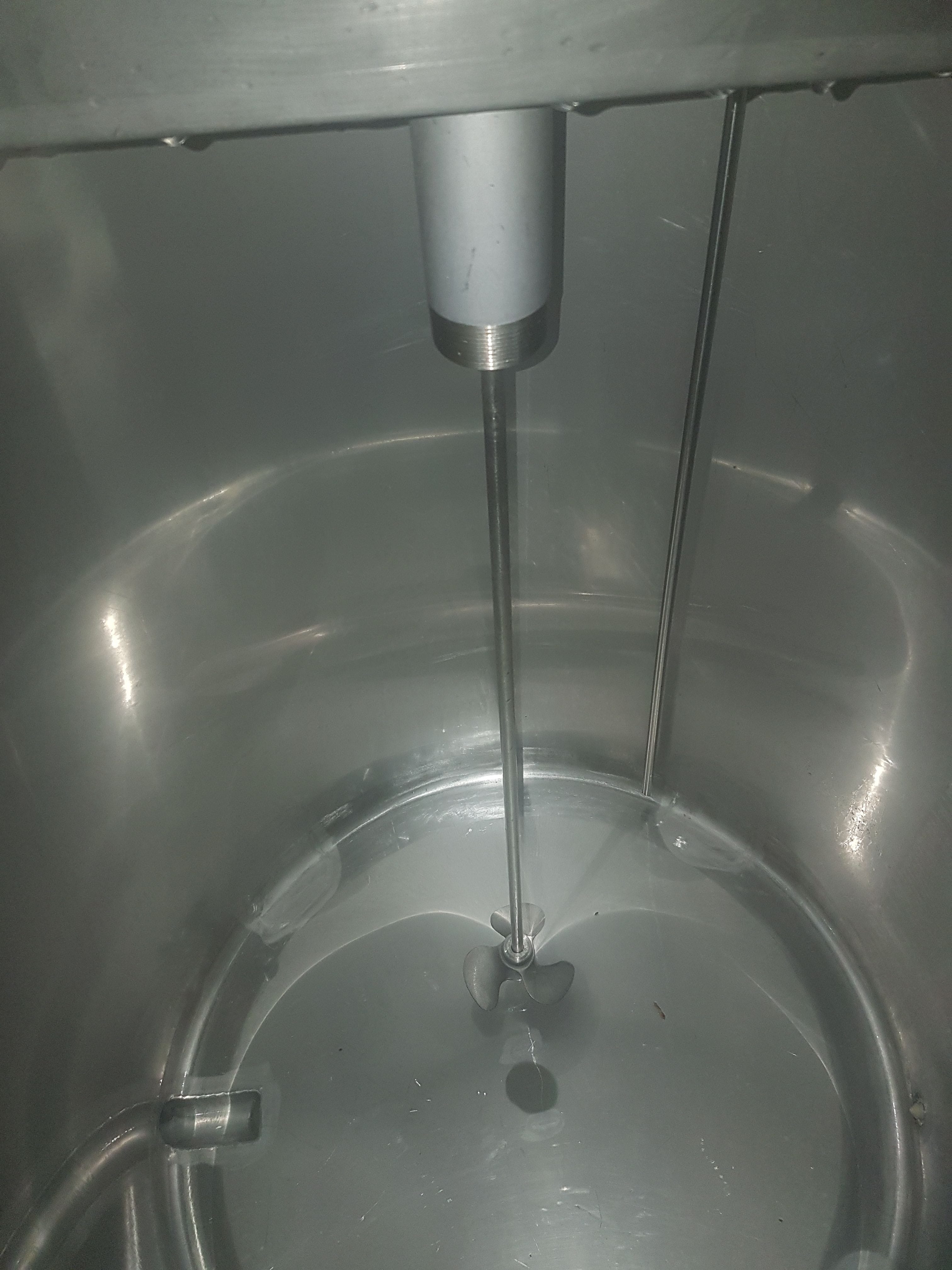

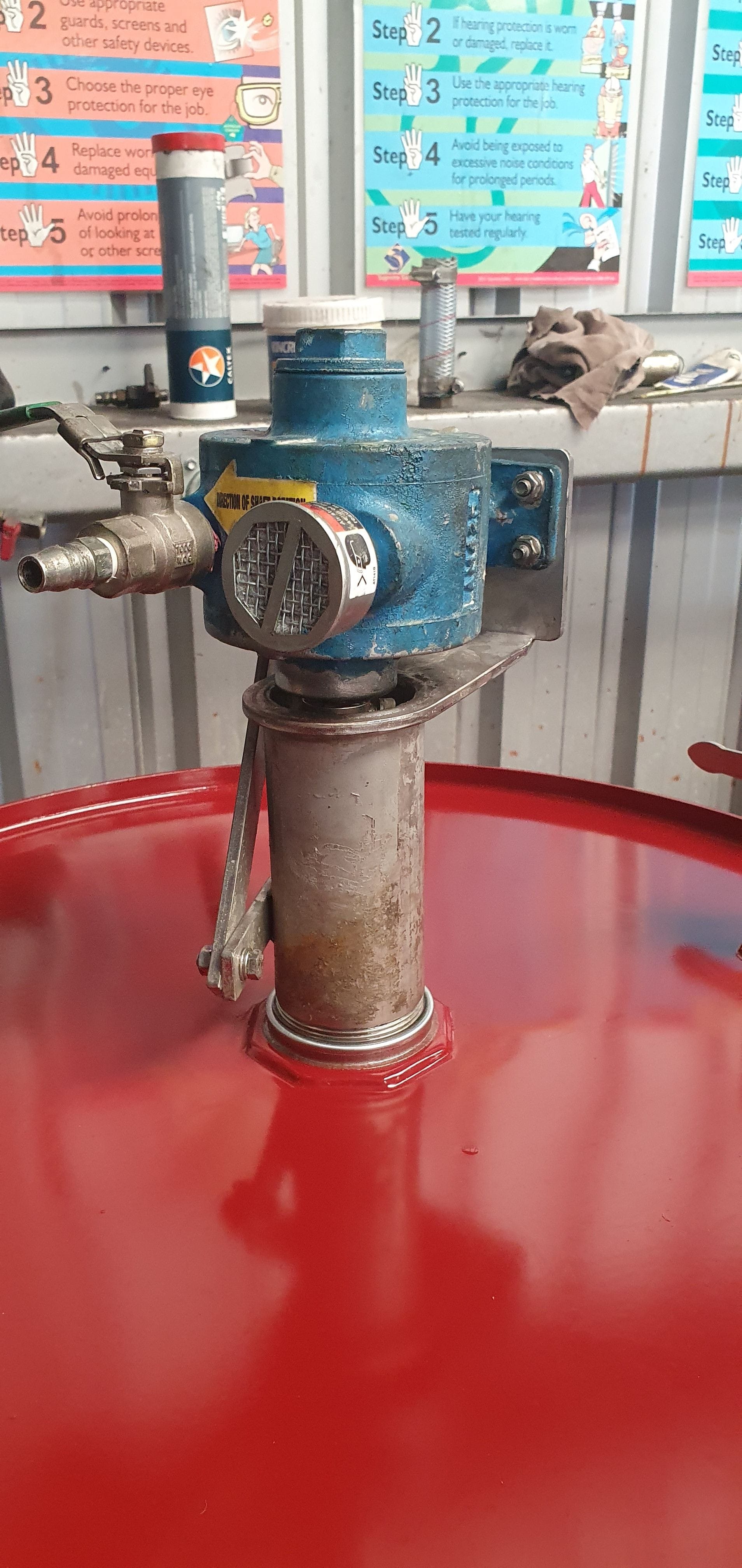

Drum Mixer Gallery
FluidPro's DM-50 and DM-70 Clamp Mount Mixers have been used in a variety of projects blending liquids, solids and semi-solids for the water treatment, food & beverage, cosmetics and chemical mixing industries. Click to enlarge images.
